General Description

Tx speed: 1.244Gbps

Rx speed: 1.244Gbps

Tx wavelength: 1310nm

Rx wavelength: 1490nm

Minimum Fiber Output Power：1.2 mW

Minimum Sensitivity：-28 dBm

Features

Single fiber bi-directional data links application

Transmitter：DFB laser diode

Receiver：APD-TIA /S-TIA

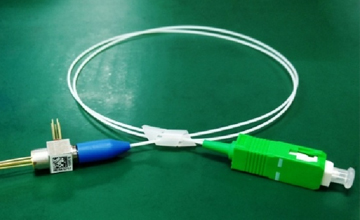

Encapsulation: SC Pigtail/ Receptacle

1310nm burst mode DFB transmitter and Burst On/Off time is less than 30ns.

1490nm continuous mode continuous-mode APD-TIA/ S-TIA receiver

 -40~ 85°C operating case temperature

RoHS compliance for SOEB3466-FUGF

Applications

Gigabit Ethernet PON ONU for P2MP Application.

Standard

Compliant with ITU-T G984.5
